| Source: |
Lormedy |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Date: |
|
|
|
29/09/2021 18:00 |
|
| Tool: |
Eeschema 4.0.7 |
|
| Generator: |
|
|
|
KICAD |
|
| Component Count: |
56 |
|
|
|
|
|
|
| Ref |
Qty |
Value |
Cmp name |
Footprint |
Description |
Vendor |
|
|
|
|
|
| C1, |
1 |
470µF/25V |
CP |
Lib_perso:CP_Radial_D8.0mm_P3.50mm |
Polarised capacitor |
10V
16V 25V 35V 50V 400V haute fréquence basse ESR condensateur en aluminium
100UF 220UF 330UF 470UF 680UF 1000UF 1500UF 2200UF 3300UF UF |
|
| C2, |
1 |
100nF |
C |
Lib_perso:C_Rect_L7.0mm_W3.5mm_P5.00mm |
Unpolarized ceramic capacitor |
50
pcs 2.54mm Monolithique Multicouche condensateur céramique
101/102/103/104/220/330 50 v 100PF/1NF/10NF/0.1 uf/22PF/33PF/100nf |
|
| C3, |
1 |
100µF/16V |
CP |
Lib_perso:CP_Radial_D8.0mm_P3.50mm |
Polarised capacitor |
10V
16V 25V 35V 50V 400V haute fréquence basse ESR condensateur en aluminium
100UF 220UF 330UF 470UF 680UF 1000UF 1500UF 2200UF 3300UF UF |
|
|
|
|
|
| D1, |
1 |
1N4007 / 1N5408 |
D |
2A |
Diode |
20
PIÈCES Redresseur Diode 1N5408 1N5404 1N5401 1N5822 1N5818 1N5400 1N5820
1N5406 1N5402 3A 50V 100V 200V 400V 600V 800V DO-201Ad |
|
| D2, |
1 |
D_Bridge_+A-A |
D_Bridge_+A-A |
|
Diode bridge (pins: 1=+, 2=AC, 3=-, 4=AC) |
https://fr.aliexpress.com/item/Free-shipping-20PCS-2w10-2A-1000V-diode-bridge-rectifier-2W10/32828648841.html?spm=a2g0s.9042311.0.0.59746c37FmVTIs |
|
| D3, |
1 |
LED_Jaune |
LED_ALT |
Lib_perso:LED_D3.0mm |
LED generic, alternativ symbol |
https://www.aliexpress.com/item/500Pcs-lot-3MM-LED-Diode-Kit-Mixed-Color-Red-Green-Yellow-Blue-White/32749396579.html |
|
|
|
|
|
| F1, |
1 |
Polyfuse_Small 1A |
Polyfuse_Small |
Lib_perso:Fuse_L9.0mm_W1.2mm_P5.08mm |
resettable fuse, polymeric positive temperature
coefficient (PPTC), small symbol |
https://fr.aliexpress.com/item/10-Pcs-RGEF300-16-V-3A-PPTC-PTC-Radial-M-ne-Fusible-R-armable-M-Interm/32881949040.html?spm=a2g0w.search0104.3.1.78054367etYskw&ws_ab_test=searchweb0_0%2Csearchweb201602_2_10065_10068_319_10892_317_10696_453_10084_454_10083_10618_10304_10307_10820_10821_538_537_10302_536_5730115_10843_10059_10884_10887_100031_321_322_10103_5729115%2Csearchweb201603_51%2CppcSwitch_0&algo_pvid=d1500e36-682c-44b1-8a45-b5766fc74e6f&algo_expid=d1500e36-682c-44b1-8a45-b5766fc74e6f-0Interm/32881949040.html?spm=a2g0w.search0104.3.1.78054367etYskw&ws_ab_test=searchweb0_0%2Csearchweb201602_2_10065_10068_319_10892_317_10696_453_10084_454_10083_ |
|
|
|
|
https://fr.aliexpress.com/item/JK30-Plug-dans-auto-Fusible-R-armable-PPTC-RUEF-30-v-0-9A-1-1A-1/32870272834.html?spm=a2g0w.search0104.3.23.6dd345b6SOxZA2&ws_ab_test=searchweb0_0%2Csearchweb201602_2_10065_10068_319_10892_317_10696_453_10084_454_10083_10618 |
|
| H1, H2,H3, H4, |
4 |
Screw_Terminal_01x01 |
Vis à bois 20x3mm |
Lib_perso:MountingHole_3.2mm |
Generic screw terminal,
single row, 01x01 |
|
| H1, H2,H3, H4, |
4 |
Spacer |
Entretoise 10mm |
Option de montage |
|
https://fr.aliexpress.com/item/33031794972.html?spm=a2g0o.productlist.0.0.51fd542bqUjXUz&algo_pvid=9ed023c9-ae06-48c6-b8a9-49b79d3bdef2&algo_exp_id=9ed023c9-ae06-48c6-b8a9-49b79d3bdef2-10&pdp_ext_f=%7B%22sku_id%22%3A%2267272514942%22%7D |
|
|
|
|
|
| J1, J2, J3, J4, J5, J6, J7, J8 |
4 |
Conn_01x04_Male |
Conn_01x04_Male |
PT-3.81mm_4pol Vert |
Generic connector, single row, 01x04 |
|
|
| J1, J2, J3, J4, J5, J6, J7, J8 |
8 |
Conn_01x03_Male |
Pin_Header_Straight_1x03_Pitch2.54mm |
PT-2.54mm_3pol |
Generic connector, single row, 01x03 |
10
pièces 2.54mm Simple Rangée Femelle 2-40P prise PCB Conseil Connecteur
D'en-Tête De Broche Bande Pinheader 1x2 P 3 4 6 10 12 14 16 20 40Pin |
|
| J9, J10, |
2 |
Conn_01x02 |
Conn_01x02 |
Lib_perso:TerminalBlock_Pheonix_PT-3.81mm_2pol |
Generic connector, single row, 01x02 |
https://fr.aliexpress.com/item/Small-Batch-10Pcs-lot-Right-Angle-Bend-3-81mm-Pitch-3-Pins-Male-Pluggable-PCB-Electrical/1780766009.html?spm=a2g0w.10010108.1000014.1.6d22727bmoxMub&pvid=093ea0e1-d86a-42c6-9899-540051f438c7&gps-id=pcDetailBottomMoreOtherSel |
|
|
|
|
|
| R1, R2 |
1 |
4k7 |
R |
Resistors_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal |
Resistor |
Résistances
à film métallique, 1 pièces 4 w, 0r-22 m, 100, 1% w, 0 0,25, 10 2,2 100, 120,
150, 220, 270, 330, 1 k, 470 k, 2,2 k, 10 k, 4,7k, 100 k, 1m, 10 m, 20 m,
ohms |
|
| R3, R4,
R5 |
3 |
10k |
R |
Resistors_THT:R_Axial_DIN0207_L6.3mm_D2.5mm_P10.16mm_Horizontal |
Resistor |
https://www.aliexpress.com/item/600PCS-LOT-1-4W-Metal-Film-Resistor-Kit-1-Resistor-Assorted-Kit-Set-10-ohm-1M/32475181535.html |
|
| R11,R12,R13,R14,R15,R16,R17,R18 |
8 |
150 |
R CMS 805 |
Resistors_SMD:R_0805_HandSoldering
device |
Resistor CMS |
Résistance
SMD 100, précision 0805 0 ohm ~ 10M ohm 1K 1% K 10K 2.2K 0 1 10 100 100 150
ohm 1R 10R 100R 150R 220R 330R, 220 pièces |
|
| R21,R22,R23,R24 |
4 |
150 |
R CMS 805 |
Resistors_SMD:R_0805_HandSoldering
device |
Resistor CMS |
Résistance
SMD 100, précision 0805 0 ohm ~ 10M ohm 1K 1% K 10K 2.2K 0 1 10 100 100 150
ohm 1R 10R 100R 150R 220R 330R, 220 pièces |
|
| R25,R26,R27,R28 |
4 |
150 |
R CMS 805 |
Resistors_SMD:R_0805_HandSoldering
device |
Resistor CMS |
Résistance
SMD 100, précision 0805 0 ohm ~ 10M ohm 1K 1% K 10K 2.2K 0 1 10 100 100 150
ohm 1R 10R 100R 150R 220R 330R, 220 pièces |
|
|
|
|
|
| SW1,SW2, |
2 |
Bouton poussoir CMS ou avec pattes |
SW_Push |
Lib_perso:SW_SPST_B3S-1000 |
Push button switch, generic, 4 pins |
https://fr.aliexpress.com/item/4001356961226.html?spm=a2g0o.productlist.0.0.167c2ec5fA7yo3&algo_pvid=7f824879-b98c-4da8-bae6-4cf72b918a8a&algo_exp_id=7f824879-b98c-4da8-bae6-4cf72b918a8a-0&pdp_ext_f=%7B%22sku_id%22%3A%2210000015792925680%22%7D |
|
|
|
|
|
| U2, |
1 |
H11L1M |
H11L1 |
ou MOC 5009 |
Schmitt Trigger Output Optocoupler, High
Speed, DIP-6, 1.6mA turn on threshold |
https://fr.aliexpress.com/item/10PCS-H11L1M-DIP6-H11L1-DIP-new-and-original-IC-free-shipping/32530234473.html?spm=a2g0w.search0104.3.1.64c06901PFlGJ3&ws_ab_test=searchweb0_0,searchweb201602_2_10065_10068_319_10892_317_10696_453_10084_454_10083_10618_10304 |
|
| U1, |
1 |

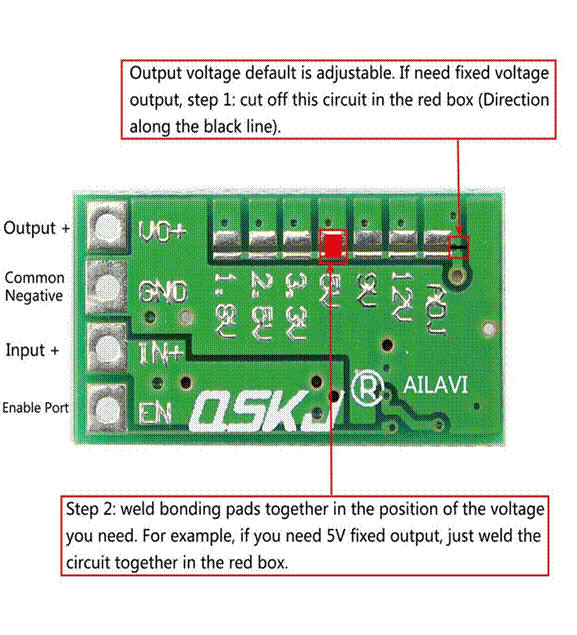

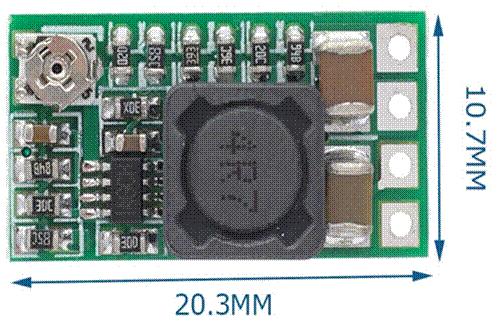

L7805 down switching
converter |
Voir image ci-dessous |
Lib_perso:TO-220-OKI |
Positive 1.5A 35V Linear Regulator, Fixed
Output 5V, TO-220/TO-263/TO-252 |
https://fr.aliexpress.com/item/32320177001.html?spm=a2g0o.detail.pcDetailTopMoreOtherSeller.4.7cabHR5YHR5Y0Q&gps-id=pcDetailTopMoreOtherSeller&scm=1007.40050.354490.0&scm_id=1007.40050.354490.0&scm-url=1007.40050.354490.0&pvid=00af2695-6261-4a89-b400-fb74 |
|
|
|
|
|
https://fr.aliexpress.com/item/1005006198615565.html?spm=a2g0o.detail.pcDetailBottomMoreOtherSeller.18.6f9b5Rqm5Rqm8C&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.40050.354490.0&scm_id=1007.40050.354490.0&scm-url=1007.40050.354490.0&pvid=33b52c09-30ab-4b |
|
|
|
|
|
https://fr.aliexpress.com/item/Ultra-Petite-Taille-DC-DC-tape-Vers-Le-Bas-Module-D-alimentation-3A-Buck-Converter-R/32880983608.html?spm=a2g0w.10010108.1000014.4.122257b4nVQCAs&pvid=3ff28516-33cc-470d-86e9-7f339617f244&gps-id=pcDetailBottomMoreOtherSeller |
|
|
|
|
|
|
|
| U3, |
1 |
ARDUINO_NANO |
ARDUINO_NANO |
|
Nano |
https://fr.aliexpress.com/item/32341832857.html?spm=a2g0o.detail.0.0.3a6824595AUS9x&gps-id=pcDetailCartBuyAlsoBuy&scm=1007.12908.232710.0&scm_id=1007.12908.232710.0&scm-url=1007.12908.232710.0&pvid=895a33e4-b7ae-44f3-9b24-1f737fa37314&_t=gps-id:pcDetailCa |
|
| U3S |
2 |
Barrette 15 pins |
Support |
Socket_Strip_Straight_1x15_Pitch2.54mm |
Support |
https://fr.aliexpress.com/item/1005001418544370.html?spm=a2g0o.detail.1000014.47.1c5c45fa6TMszZ&gps-id=pcDetailBottomMoreOtherSeller&scm=1007.33416.213724.0&scm_id=1007.33416.213724.0&scm-url=1007.33416.213724.0&pvid=8112eb78-c591-4511-b57f-7695dd584ead&_ |
|
|
|
|
|
| PCB |
1 |
Circuit imprimé |
SOL-SIG-SERVO |
|
|
|
|
|
| Notes : |
|
|
|
|
|
|
| Ne pas installer la ligne
grisée. |
|
|
|
|
|
|
|
| Choisir parmi les 2 lignes
vertes |
|
|
|
| selon la configuration
choisie. |
|
|
|
|
|
|
|
| Ne pas
installer ces résistances pour commander des servos. |
|
|
|
| !
Elles sont réparties en 2 groupes de 4 sorties independantes. ! |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
